Carbon Steel oil level sight glass

  • FLENDER INDUSTRIAL GEAR UNITS Steel oil sight glass plug BSP3/8
  • FLENDER INDUSTRIAL GEAR UNITS Steel oil sight glass plug BSP3/8
FLENDER INDUSTRIAL GEAR UNITS Steel oil sight glass plug BSP3/8 FLENDER INDUSTRIAL GEAR UNITS Steel oil sight glass plug BSP3/8

FLENDER INDUSTRIAL GEAR UNITS Steel oil sight glass plug BSP3/8

  • Carbon Steel Oil level sight glass Plated
  • Material Body:   Steel Plated(Zinc,Nickel plated and chrome plated)
  • O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
  • Glass Thickness: 2mm to 8 mm
  • Reflectors: Stainless Steel 304 Reflector
  • Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
  • Resist Tempreature Range:-30'C to 180'C
  • Pressure Range:  5-50 Bar(0.5MPa to 5MPa).
  • Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
  • Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.
  • Usage:  Pump,Oil Receivers,Gearboxes,Speed Reducer,
  • Compressor and Power Transimission.
  • INQUIRY

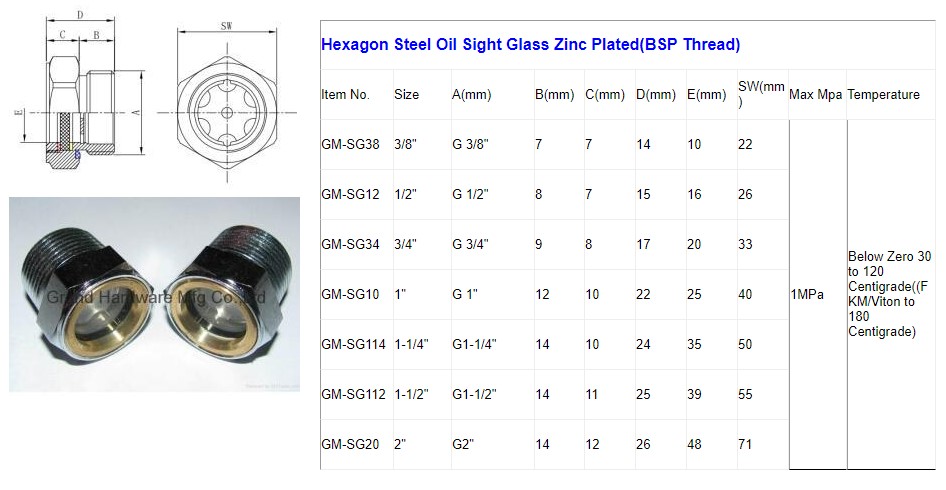

Hexagon Steel Oil Sight Glass(BSP Thread).JPG

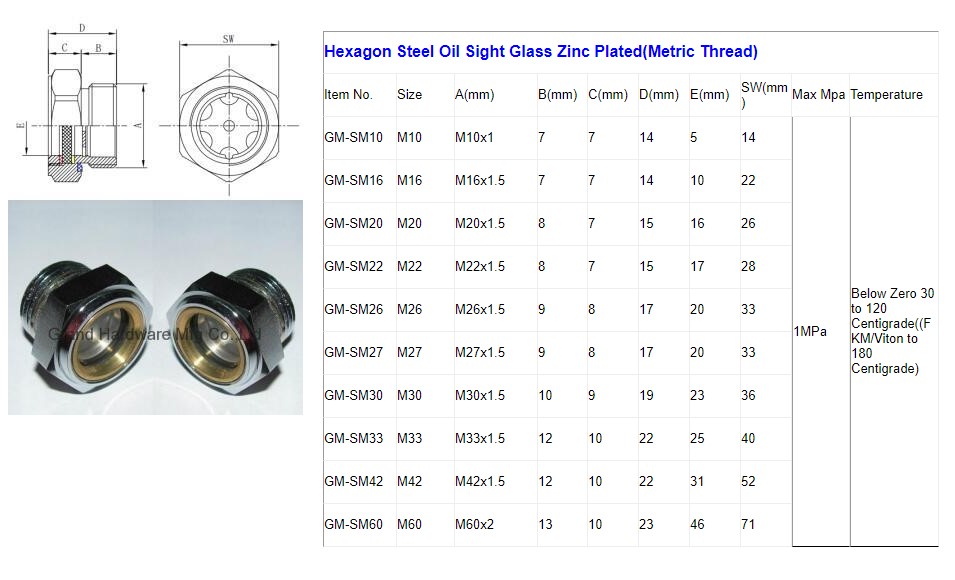

Hexagon Steel Oil Sight Glass(Metric Thread).JPG

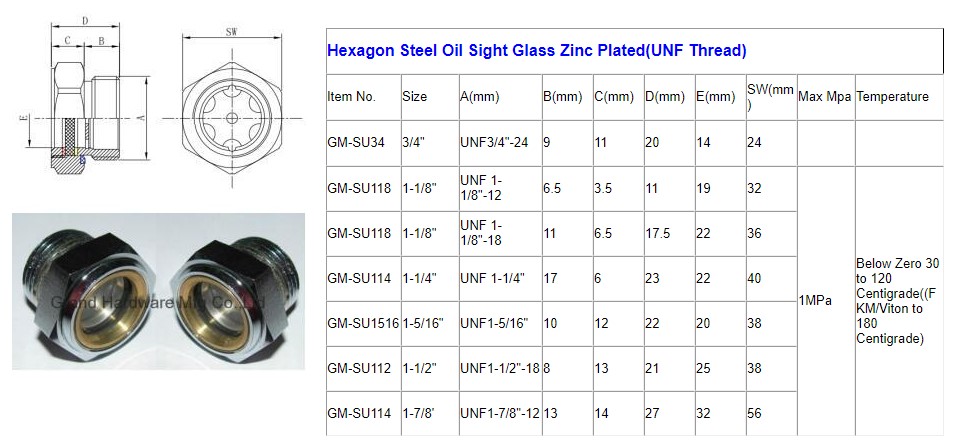

Hexagon Steel Oil Sight Glass Zinc Plated(UNF Thread).JPG

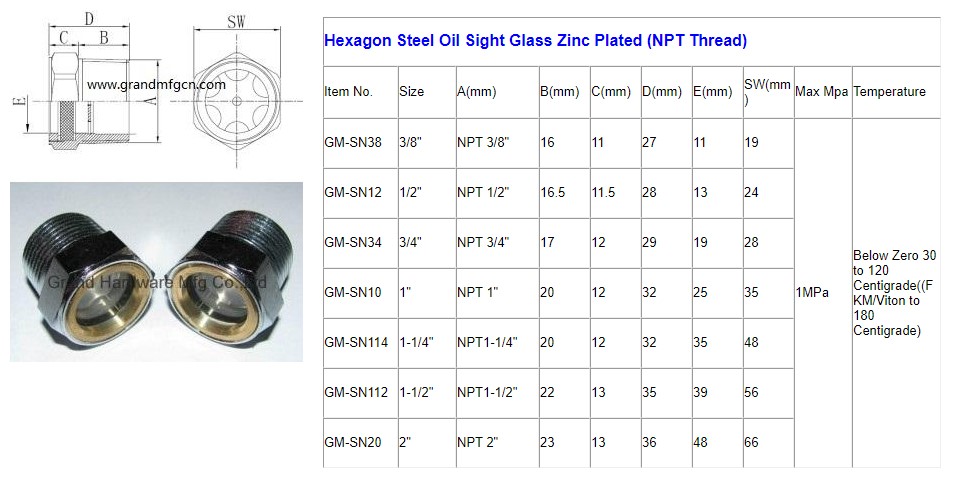

Hexagon Steel Oil Sight Glass Zinc Plated (NPT Thread).jpg


LINK TO:     GO TO GRAND-MFG CATALOGUE


Any special requirements just feel free to let us know.
